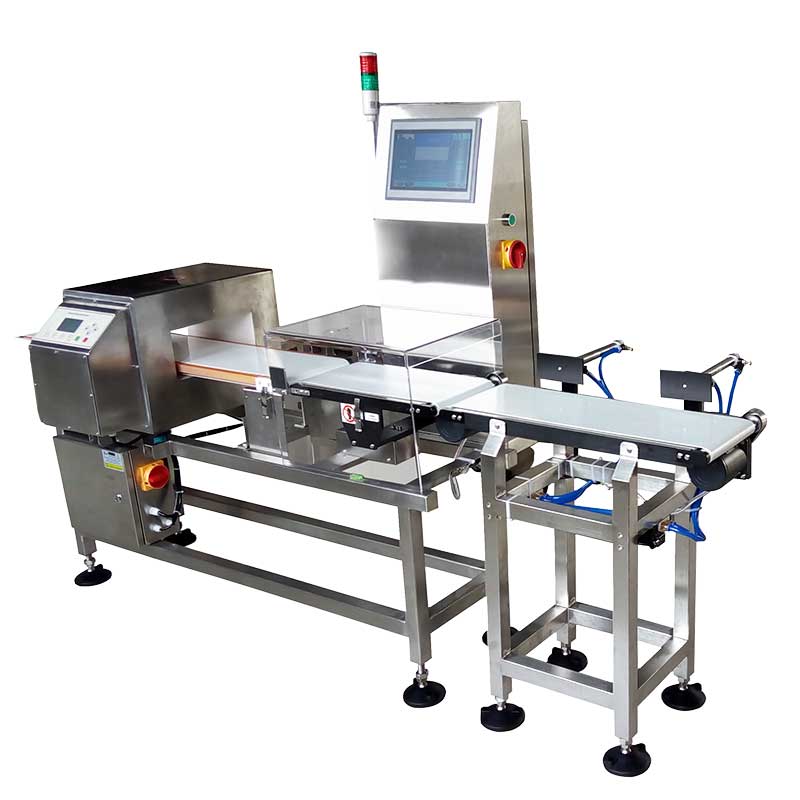

Combined metal detector checkweigher ZG-COM-200

Applied industries:
Food and beverage, hygiene products, personal-care products, snacks, candies,coffee, dough, functional food, pharmacy, etc

Product function:
Detecting metal contaminants and checking packed product weight and rejecting the NG(under or over weight) products after weighed.

Features:
1. Compact design ,space saving and low cost installation
2.Advanced and proper rejection system
3. Human-main friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. High sensitivity and precision for metal detection and weight checking


Want to know more ?
Email us:  sales@zegoo.net  or Leave a message  Submit





Technical details:

Name Combined metal detector checkweigher
Model ZG-COM-200/ZG-COM-300
Menu language English(Other languages optional)
Metal detection abilities Detecting all kinds of metals include Ferrous, Non-Ferrous(Aluminum,Copper),Stainless steel 304,316,etc.
Effective detection width 200mm/300mm
Effective detection height 120mm(other height optional)
Product quantity restored 250 kinds of product restored in menu
Max weighing 1kg/3kg
Increment 0.1g
Accuracy(Зσ) +-0.5-+-1.0g(depends on product)
Weighing speed 120 pcs/min(as per request)
Segments of sorting Metal detector +Weigher+Double pusher rejector
In feed metal detector conveyor size Length 1090 mm   Width 200mm / 300mm
Weigher platform size Length 400mm   Width 200mm / 300mm
Out feed conveyor pusher Length 600mm   Width 200mm / 300mm
Height from floor to conveyor belt 750+-50mm
Conveyor direction Left->Right(Operator faces to panel)
Rejection system Double automatic pusher rejector(other rejectors optional)
Ingress rating IP65/IP66
Frame material SUS 304(industrial grade)
Display type 10 inches touch screen
Data exchange and export USB, RS232,Ethernet port(other optional)
HS code 842320

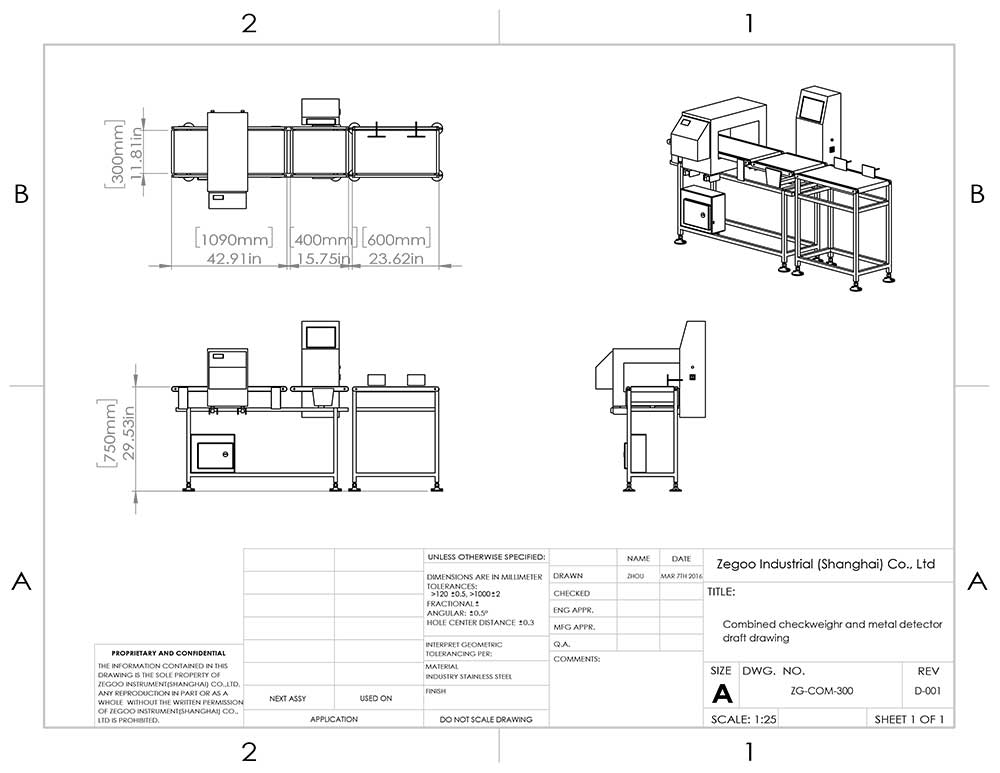

Draft drawing:
