Applied industries:
Rice, coffee powder ,ingredients, wheat flour, bulk snack food, PET and PP plastic powder and flakes, salt and sugar powder, granules, etc.
Product function:
Detecting all kinds of metal contaminants before packaging include Ferrous, Aluminum,Copper, Stainless steel 304,316,etc
Features:
1. Drop through product in feed
2.Automatic flap rejection system
3. Easy operation and calibration
4. Compact frame and endurable working
Want to know more ?
Email us: sales@zegoo.net or Leave a message Submit
Technical details:
| Name | Free fall metal detector |
| Model | ZG-FD-75 | ZG-FD-100 | ZG-FD-150 |
| Throat diameter size | 75mm | 100mm | 150mm |
| Capacity | 3 tons/hour | 5 tons/hour | 10 tons/hour |
| Tunnel type | Gravity fall (free fall) |
| Detection ability | Ferrous, Non-Ferrous(Aluminum, Copper),Stainless steels 304, 316 and other metals |
| Air pressure | ≥ 0.5 Mpa |
| Height from input to output hole | ≥ 800mm |
| Operation language | English |
| Product memories | 100 kinds of products restored |
| Panel display | LED (button controller) |
| Tube material | Teflon |
| Rejection system | Automatic flap rejector(Other automatic rejectors optional) |
| Power Supply | 220V 50Hz(Other optional) |
| Frame material | SUS304 (industrial grade) |
| Ingress rating | IP54/IP65/IP66 |
| HS code | 9031809090 |

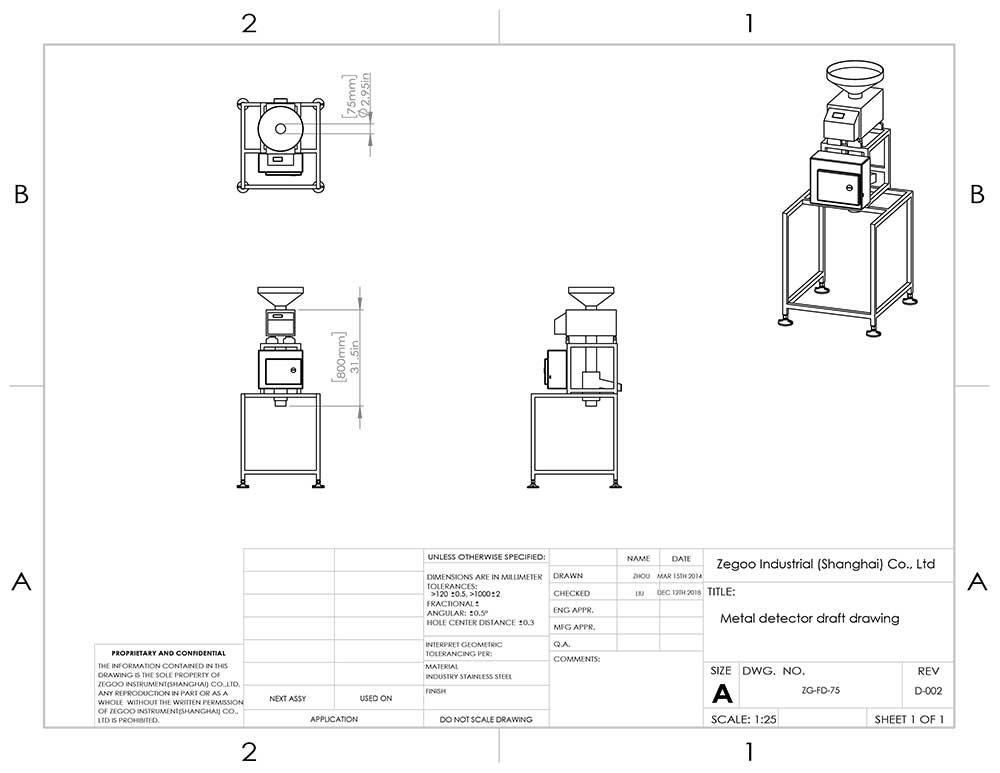

Draft drawing:
