Liquid level measuring radar sensors

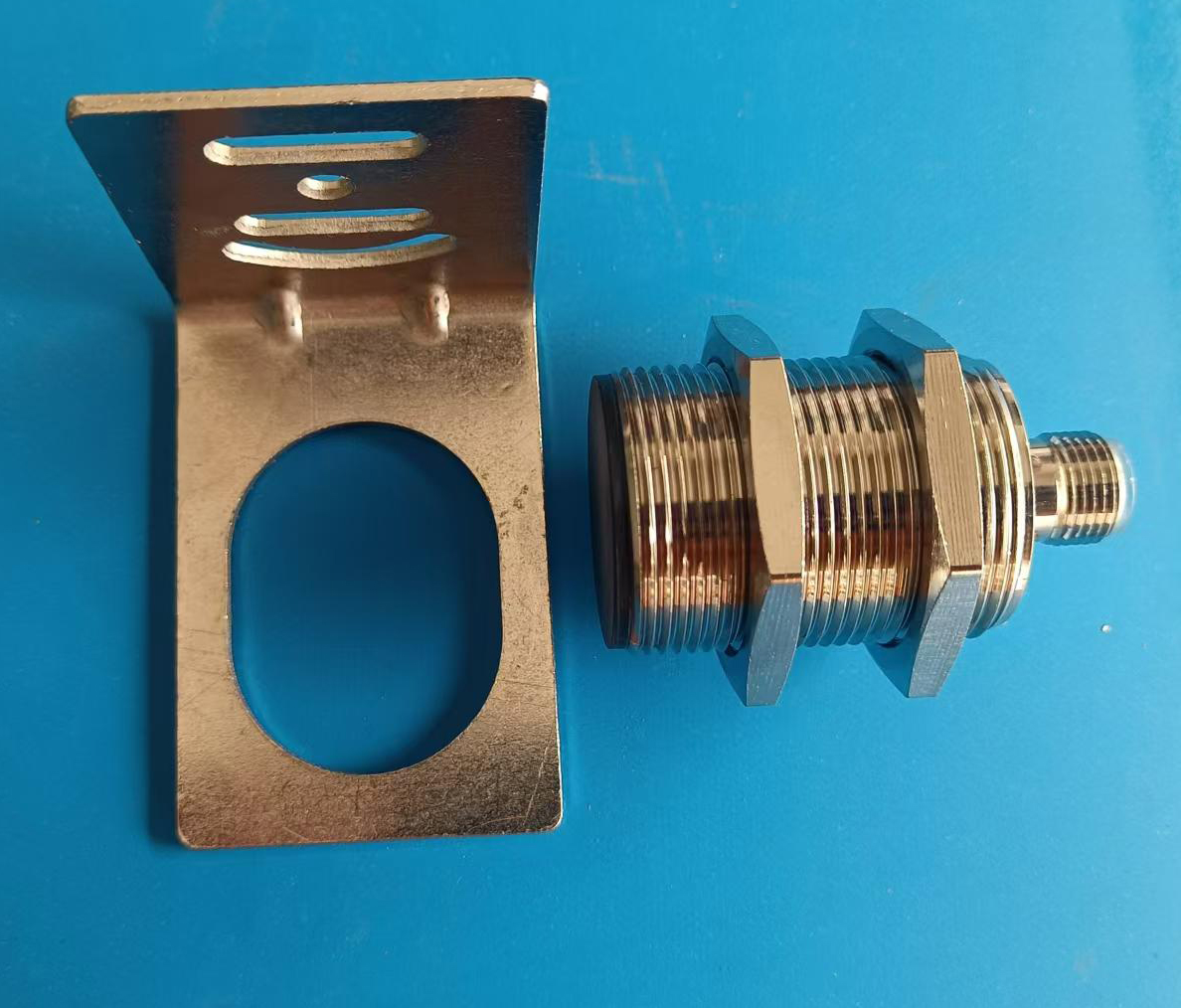

The Radar Ranging Sensor is a high-quality product independently developed by Zegoo Industrial, which adopts millimeter-wave radar (60G) detection technology. As a ranging sensor designed based on the principles of pulse coherent radar and frequency-modulated continuous wave (FMCW) radar, it has a maximum detection distance of up to 50 meters. Meanwhile, it features high precision, low power consumption, small size, and high stability. Through an excellent antenna design, the microwave energy of the sensor is more concentrated, which greatly improves the measurement precision and accuracy.
With strong anti-interference capability, the sensor is not affected by external factors such as dust, smoke, light, temperature, and gas, enabling it to work around the clock. It is suitable for fields including liquid level measurement, material level measurement, parking space detection, and robot obstacle avoidance.
The HYDS Radar Ranging Sensor is simple and convenient to use. No on-site calibration is required, and it can be used immediately after installation. In addition, it is equipped with rich output interfaces (RS485, UART (TTL), 0~10V, 4~20mA) and supports ModbusRTU and string protocols. It adopts shell designs made of different materials, making it applicable to both ordinary scenarios and environments with strong acid and alkali. It also has a fully sealed structure with an IP67 ,IP68 protection rating.
